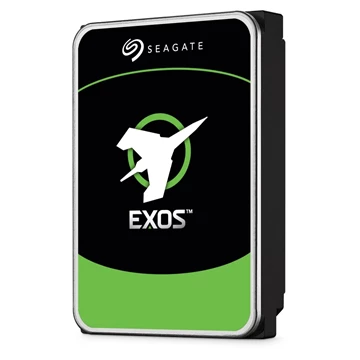

SEAGATE ST24000NM001K Exos M 24TB 7200RPM SATA 6Gb/s 512MB buffer 512e ISE 3.5inch HDD

SEAGATE | More HARD DRIVES from SEAGATE · Part: ST24000NM001K

Capacity Capacity: 24TB-7200RPM

Availability 5-7 days

Request Quote

Product overview

SEAGATE Exos M 24tb 7200rpm Sata 6gb/s 512mb Buffer 512e Ise 3.5inch Enterprise Hard Disk Drive.

General Information

ManufacturerSEAGATE
Product NameExos M
Cmr Capacity24 Tb
Standard Model - (ise) - 512eST24000NM001K

Best-fit Applications

Scalable Hyperscale Applications/cloud Data Centers
Massive Scale-out Data Centers
Big-data Applications
High-capacity Density Raid Storage
Mainstream Enterprise External Storage Arrays
Distributed File Systems, Including Hadoop And Ceph
Enterprise Backup And Restore— D2d, Virtual Tape

Features

Recording TechnologyCmr
Helium Sealed-drive DesignYes
Super ParityYes
Low HalogenYes
Powerchoice™ Idle Power TechnologyYes
Powerbalance™ Power/performance TechnologyYes
Hot-plug SupportYes
Cache, Multisegmented (mb)512
Organic Solderability PreservativeYes
Rsa 3072 Firmware Verification (sd&d)Yes

Reliability And Data Integrity

Mean Time Between Failures (mtbf, Hours)2500000hr
Reliability Rating @ Full 24×7 Operation (afr)0.35%
Nonrecoverable Read Errors Per Bits Read1 Sector Per 10e15
Power-on Hours Per Year (24×7)8760
512e Sector Size (bytes Per Sector)512e

Performance

Spindle Speed (rpm)7200 Rpm
Interface Access Speed (gb/s)6.0, 3.0
Max. Sustained Transfer Rate Od (mb/s,mib/s)240mb/s / 229mib/s
Random Read/write 4k Qd16 Wcd (iops)170 / 350
Average Latency (ms)4.16 Ms
Interface PortsSingle
Rotation Vibration @ 20-1500 Hz (rad/sec)12.5

Power Consumption

Idle A (w) Average6.9w
Max Operating, Random Read 4k/16q (w)9.5w
Power Supply Requirements+12v And +5v

Environmental

Temperature, Operating (°c) - Drive Reported10°c - 60°c
Vibration, Nonoperating2 To 500hz (grms) : 2.27
Shock, Operating 2ms (read/write) (gs)30gs
Shock, Nonoperating 2ms (gs)200

Physical

Height (mm/in)26.1 Mm
Width (mm/in, Max)101.85 Mm
Depth (mm/in, Max)147.0 Mm
Weight (gm/lb)695 G
Availability5-7 days
Warranty90 Days.
