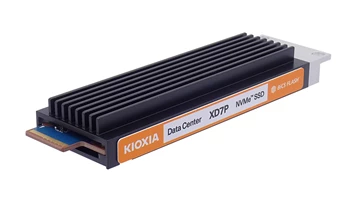

KIOXIA KXDZDRJJ7T68 7.68TB XD7P Series PCIe® 5.0 NVMe™ 2.0 9.5 mm thickness E1.S Sed Ssd
KIOXIA | More SSD from KIOXIA · Part: KXDZDRJJ7T68
Capacity Capacity: 7.68TB
Availability 5-7 days
Product overview
KIOXIA KXDZDRJJ7T68 7.68tb Xd7p Series Pcie® 5.0, Nvme™ 2.0 9.5 Mm Thickness E1.s Sed (self Encrypting Drive) Solid State Drive.
Basic Specifications
Form FactorE1.s 9.5mm
LnterfacePcie® 5.0, Nvme™ 2.0
Maximum Interface Speed64 Gt/s (pcie® Gen4 X4)
Flash Memory TypeBics Flash™ Tlc
Performance
Sustained 128 Kib Sequential Read7,200 Mb/s
Sustained 128 Kib Sequential Write4,800 Mb/s
Sustained 4 Kib Random Read1,550k Iops
Sustained 4 Kib Random Write200k Iops
Power Requirements
Supply Voltage12 V ± 10 %
Power Consumption (active)20 W Typ.
Power Consumption (ready)5 W Typ.
Reliability
Mttf2,000,000 Hours
Endurance Dwpd1
Dimensions
Thickness9.5 Mm ± 0.35 Mm
Width33.75 Mm ± 0.25 Mm
Length118.75 Mm ± 0.55 Mm
Weight75 G Max
Environmental
Temperature (operating)0 °c To 75 °c
Temperature (non-operating)-40 °c To 85 °c
Humidity (operating)5 % To 95 % R.h.
Vibration (operating)12 M/s2 { 1.24 Grms } ( 2 To 500 Hz )
Shock (operating)6,864 M/s2 { 700 G } ( 0.5 Ms )
Availability5-7 days
Mfg WarrantyNone.
Our Warranty90 Days.
