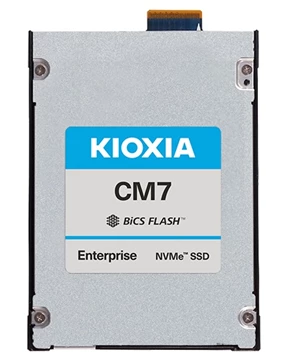

KIOXIA KCM7FRJE1T92 1.92TB CM7-R Series PCIe 5.0 NVMe 2.0 E3.S 7.5mm 1DWPD Enterprise Ssd
KIOXIA | More SSD from KIOXIA · Part: KCM7FRJE1T92
Capacity Capacity: 1.92TB
Availability 5-7 days
Product overview
KIOXIA KCM7FRJE1T92 1.92tb Cm7-r Series Pcie® 5.0 Nvme™ 2.0 E3.s 7.5mm Thickness 1dwpd Enterprise Solid State Drive.
Basic Specifications
Form FactorE3.s
InterfacePcie® 5.0, Nvme™ 2.0
Maximum Interface Speed128 Gt/s (pcie® Gen5 Single X4, Dual X2)
Flash Memory TypeBics Flash™ Tlc
Performance In Single Port (1x4) Mode (up To)
Sustained 128 Kib Sequential Read14,000 Mb/s
Sustained 128 Kib Sequential Write3,500 Mb/s
Sustained 4 Kib Random Read2,000k Iops
Sustained 4 Kib Random Write155k Iops
Power Requirements
Supply Voltage12 V ± 10 %, 3.3 V ± 15 %
Power Consumption (active)21 W Typ.
Power Consumption (ready)5 W Typ.
Reliability
Mttf2,500,000 Hours
Dwpd1
Dimensions
Thickness7.5 Mm +0.2 / -0.5 Mm
Width76 Mm ± 0.25 Mm
Length112.75 Mm ± 0.4 Mm
Weight110 G Max
Environmental
Temperature (operating)0 °c To 73 °c 0 °c To 76 °c
Temperature (non-operating)-40 °c To 85 °c
Humidity (operating)5 % To 95 % R.h.
Vibration (operating)21.27 M/s2 { 2.17 Grms } ( 5 To 800 Hz )
Shock (operating)9.8 Km/s2 { 1,000 G } ( 0.5 Ms )
Availability5-7 days
Mfg WarrantyNone
Our Warranty90 Days
