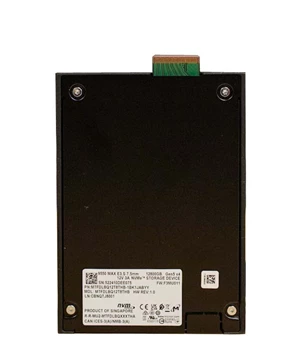

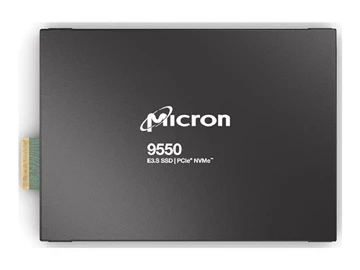

Micron 9550 Max MTFDLBQ12T8THB-1BK1DABYY SSD 12.8 TB Pci Express 5.0 x4 (NVMe) Brand New
MICRON | More SSD from MICRON · Part: MTFDLBQ12T8THB-1BK1DABYY
Capacity Capacity: 12.8TB
Availability 5-7 days
Product overview
Primary Information
Product DescriptionMICRON 9550 Max - Ssd - Enterprise, Read Intensive - 12.8 Tb - Pci Express 5.0 X4 (nvme) - Taa Compliant
TypeSolid State Drive - Internal
Capacity12.8 Tb
Hardware EncryptionYes
Encryption Algorithm256-bit Aes
Nand Flash Memory Type3d Triple-level Cell (tlc)
Form FactorE3.s
InterfacePci Express 5.0 X4 (nvme)
Drive ClassEnterprise, Mixed Use
FeaturesOpen Compute Project 2.0, Power Loss Protection (plp), Enterprise Data Path Protection, Redundant Array Of Independent Nand, Nvme Management Interface (nvme-mi), Firmware Activate Without Reset, Secure Erase Function, Secure Boot, Hardware Root Of Trust, Digitally Signed Firmware, Active Garbage Collection, Trim Support, Nvm Express (nvme) 2.0b, S.m.a.r.t.
Dimensions (wxdxh)2.9 In X 4.4 In X 0.3 In
Weight3.49 Oz
Taa CompliantYes
Extended Specifications
Device TypeSolid State Drive - Internal
Capacity12.8 Tb
Hardware EncryptionYes
Encryption Algorithm256-bit Aes
Nand Flash Memory Type3d Triple-level Cell (tlc)
Form FactorE3.s
InterfacePci Express 5.0 X4 (nvme)
Bytes Per Sector512
FeaturesOpen Compute Project 2.0, Power Loss Protection (plp), Enterprise Data Path Protection, Redundant Array Of Independent Nand, Nvme Management Interface (nvme-mi), Firmware Activate Without Reset, Secure Erase Function, Secure Boot, Hardware Root Of Trust, Digitally Signed Firmware, Active Garbage Collection, Trim Support, Nvm Express (nvme) 2.0b, S.m.a.r.t.
Width2.9 In
Depth4.4 In
Height0.3 In
Weight3.49 Oz
Performance
Drive Writes Per Day (dwpd)3
Ssd Endurance70080 Tb
Drive ClassEnterprise, Mixed Use
Internal Data Rate14000 Mbps (read) / 10000 Mbps (write)
4kb Random Read3300000 Iops
4kb Random Write720000 Iops
Reliability
Mtbf2,500,000 Hours
Non-recoverable Errors1 Per 10^17
Expansion & Connectivity
Interfaces1 X Pci Express 5.0 X4 (nvme)
Compatible BayE3.s
Power
Power Consumption18 Watt (sequential Read) , 16 Watt (sequential Write)
Miscellaneous
Compliant StandardsMICRON Green Standard, Fcc, Ul, Cul, Bsmi, Rcm, Kc, Rrl, Weee, Tuv, Vcci, Ic, Morocco, Ukrsepro, Ukca
Taa CompliantYes
Dimensions & Weight (shipping)
Shipping Width7 In
Shipping Depth1.1 In
Shipping Height2.1 In
Shipping Weight5.4 Oz
Environmental Parameters
Min Operating Temperature32 F
Max Operating Temperature158 F
Availability5-7 days
Mfg WarrantyNone.
Warranty90 Days.
