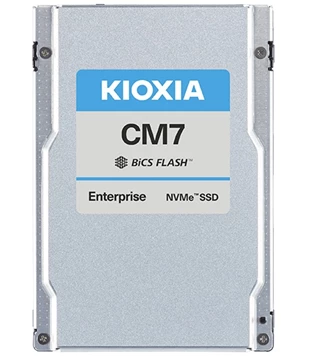

KIOXIA KCMYXVUG1T60 1.6TB NVMe 2.0 2.5inch 15mm CM7-V 3DWPD Enterprise Ssd
KIOXIA | More SSD from KIOXIA · Part: KCMYXVUG1T60
Capacity Capacity: 1.6TB
Availability 5-7 days
Product overview
Key Features
Pcie® 5.0, Nvme™ 2.0 Specification Compliant
Open Compute Project Datacenter Nvme™ Ssd Specification V2.0 Support (not All Requirements)
Open Compute Project Datacenter Nvme™ Ssd Specification V2.0 Support (not All Requirements)
Form Factor2.5-inch, 15 Mm Thickness
Proprietary KIOXIA ArchitectureController, Firmware And 112-layer Bics Flash™ 3d Tlc
Sff-ta-1001 Conformant (u.3)
Dual-port Design For High Availability Applications
High Performance With Lower Power Consumption
Power Loss Protection (plp) And End-to-end Data Protection
Suited For 24x7 Enterprise Workloads
Dual-port Design For High Availability Applications
High Performance With Lower Power Consumption
Power Loss Protection (plp) And End-to-end Data Protection
Suited For 24x7 Enterprise Workloads
Security OptionsSie
Basic Specifications
Form Factor2.5-inch, 15mm Thickness
LnterfacePcie® 5.0, Nvme™ 2.0
Maximum Interface Speed128 Gt/s (pcie® Gen5 Single X4, Dual X2)
Flash Memory TypeBics Flash™ Tlc
Performance In Single Port (1x4) Mode (up To)
Sustained 128 Kib Sequential Read14,000 Mb/s
Sustained 128 Kib SequentialWrite 3,500 Mb/s
Sustained 4 Kib Random Read2,000k Iops
Sustained 4 Kib Random Write310k Iops
Power Requirements
Supply Voltage12 V ± 10 %, 3.3 V ± 15 %
Power Consumption (active)22 W Typ.
Power Consumption (ready)5 W Typ.
Reliability
Mttf2,500,000 Hours
Dwpd3
Dimensions
Thickness15.0 Mm +0 / -0.5 Mm
Width69.85 Mm ± 0.25 Mm
Length100.45 Mm Max
Weight130 G Max
Environmental
Temperature (operating)0 °c To 76 °c
Temperature (non-operating)-40 °c To 85 °c
Humidity (operating)5 % To 95 % R.h.
Vibration (operating)21.27 M/s2 { 2.17 Grms } ( 5 To 800 Hz )
Shock (operating)9.8 Km/s2 { 1,000 G } ( 0.5 Ms )
Availability5-7 days
Mfg WarrantyNone
Our Warranty90 Days
