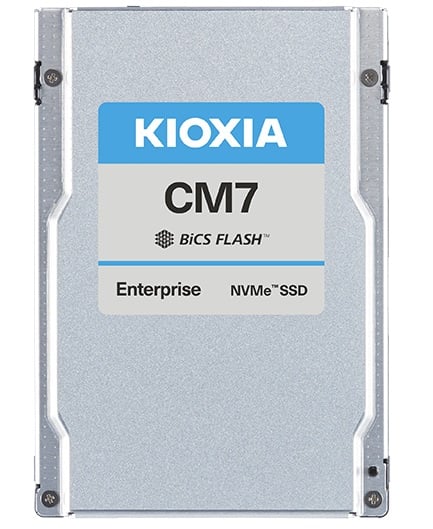

KIOXIA KCMYXVUG12T8 12.8TB NVMe 2.0 2.5inch 15mm CM7-V 3DWPD Enterprise Ssd

Name: KIOXIA KCMYXVUG12T8 12.8TB NVMe 2.0 2.5inch 15mm CM7-V 3DWPD Enterprise Ssd
Brand: KIOXIA | More SSD from KIOXIA
SKU: KCMYXVUG12T8
Price: 10000.00 USD
Availability: InStock

KIOXIA | More SSD from KIOXIA · Part: KCMYXVUG12T8

Capacity Capacity: 12.8TB

Availability 5-7 days

Request Quote

Delivery options

We ship to business and residential addresses.
Express delivery (USA) Typical transit 1–3 business days, depending on cut-off and carrier.
Free ground (USA) Usually 2–6 business days; varies by location and stock.
International delivery Where applicable, a valid carrier account (UPS, FedEx, DHL, etc.) may be required for customs and brokerage.

Returns

90-day return window where stated in our published return policy.
Items must be returned in original condition unless the policy specifies otherwise.

Warranty

Warranty length and coverage vary by manufacturer and product line.
See our policies page for full warranty and support terms.

Product overview

KIOXIA KCMYXVUG12T8 12.8tb Cm7-v Series Pcie 5.0 Nvme 2.0 2.5 Inch 15mm Thickness 3dwpd Enterprise Solid State Drive.

Basic Specifications

- Device TypeNvme Solid State Drive - Internal

- Capacity12.8tb

- Form Factor2.5-inch, 15mm Thickness

- LnterfacePcie® 5.0, Nvme™ 2.0

- Maximum Interface Speed128 Gt/s (pcie® Gen5 Single X4, Dual X2)

- Flash Memory TypeBics Flash™ Tlc

Key Features

- Pcie® 5.0, Nvme™ 2.0 Specification Compliant
- Open Compute Project Datacenter Nvme™ Ssd Specification V2.0 Support (not All Requirements)

- Form Factor2.5-inch, 15 Mm Thickness

- Proprietary KIOXIA ArchitectureController, Firmware And 112-layer Bics Flash™ 3d Tlc

- Sff-ta-1001 Conformant (u.3)
- Dual-port Design For High Availability Applications
- High Performance With Lower Power Consumption
- Power Loss Protection (plp) And End-to-end Data Protection
- Suited For 24x7 Enterprise Workloads

- Security OptionsSie

Performance

- Read14,000 Mb/s

- Write7,000 Mb/s

- 4 Kib Random Read2,400k Iops

- 4 Kib Random Write550k Iops

Power Requirements

- Supply Voltage12 V ± 10 %, 3.3 V ± 15 %

- Power Consumption (active)25 W Typ.

- Power Consumption (ready)5 W Typ.

Reliability

- Mttf2,500,000 Hours

- Endurance Dwpd3

Dimensions

- Thickness15.0 Mm +0 / -0.5 Mm

- Width69.85 Mm ± 0.25 Mm

- Length100.45 Mm Max

- Weight130 G Max

Environmental

- Temperature (operating)0 °c To 73 °c 0 °c To 76 °c

- Temperature (non-operating)-40 °c To 85 °c

- Humidity (operating)5 % To 95 % R.h.

- Vibration (operating)21.27 M/s2 { 2.17 Grms } ( 5 To 800 Hz )

- Shock (operating)9.8 Km/s2 { 1,000 G } ( 0.5 Ms )

Availability5-7 days

Mfg WarrantyNone

Our Warranty90 Days
