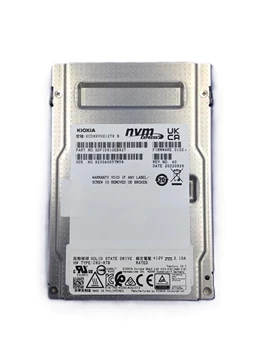

KIOXIA SDF1D81GEB92T CD8-V Mixed Use SSD 12.8 TB PCIe 4.0 x4 (NVMe) Brand New

KIOXIA | More SSD from KIOXIA · Part: SDF1D81GEB92T

Capacity Capacity: 12.8TB

Availability 5-7 days

Request Quote

Product overview

Main Specifications

Product DescriptionKIOXIA Cd8-v Series - Ssd - 12.8 Tb - U.2 Pcie 4.0 X4 (nvme)
TypeSolid State Drive - Internal
Capacity12.8 Tb
Form Factor2.5
InterfaceU.2 Pcie 4.0 X4 (nvme)
Data Transfer Rate7200 Mbps
FeaturesSanitize Instant Erase (sie), Sanitize Cryptographic Erase Support, Nvm
Express (nvme) 1.4
Dimensions (wxdxh)2.7 In X 4 In X 0.6 In
Weight4.59 Oz

Extended Specifications

Device TypeSolid State Drive - Internal
Capacity12.8 Tb
Form Factor2.5
InterfaceU.2 Pcie 4.0 X4 (nvme)
Bytes Per Sector512
FeaturesSanitize Instant Erase (sie), Sanitize Cryptographic Erase Support, Nvm
Express (nvme) 1.4
Width2.7 In
Depth4 In
Height0.6 In
Weight4.59 Oz

Performance

Drive Writes Per Day (dwpd)3
Ssd Endurance70080 Tb
Drive Transfer Rate7200 Mbps (external)
Internal Data Rate6600 Mbps (read) / 6000 Mbps (write)
Maximum 4kb Random Write380000 Iops
Maximum 4kb Random Read1050000 Iops
Average Latency10 Μs

Reliability

Mtbf2,500,000 Hours
24x7 OperationYes
Start / Stop Cycles50,000

Expansion & Connectivity

Interfaces1 X U.3 Pcie 4.0 X4 (nvme) - Sff-8639
Compatible Bay2.5

Power

Power Consumption20 Watt (active (typical)) ¦ 5 Watt (active Idle)

Software & System Requirements

Os RequiredMicrosoft Windows Server 2012 R2, Centos 6.5, Red Hat Enterprise Linux 6.5, Red Hat Enterprise Linux 7, Suse Linux Enterprise Server 12, Microsoft Windows Server 2016, Centos 7.0, Suse Linux Enterprise Server 12 Sp3, Suse Linux Enterprise Server 12 Sp1, Ubuntu 16.04 Lts, Suse Linux Enterprise Server 12 Sp2, Red Hat Enterprise Linux 8.0, Microsoft Windows Server 2019, Suse Linux Enterprise Server 15, Ubuntu 18.04 Lts, Centos 8, Ubuntu 20.04 Lts, Microsoft Windows Server 2022, Debian 9 - 11

Miscellaneous

Compliant StandardsEmc, Fcc, Weee, Cns 13438, Rohs 2011/65/eu, Emc 2014/30/eu, En 62368-1, En 55032, Ul 62368-1, As/nzs Cispr 32

Environmental Parameters

Min Operating Temperature32 °f
Max Operating Temperature165.2 °f
Min Storage Temperature-40 °f
Max Storage Temperature185 °f
Humidity Range Operating5 - 95% Rh
Shock Tolerance (operating)1000 G @ 0.5 Ms
Shock Tolerance (non-operating)1000 G @ 0.5 Ms
Vibration Tolerance (operating)2.17 G @ 5-800 Hz
Vibration Tolerance (non-operating)3.1 G @ 2-500 Hz
Availability5-7 days
Mfg WarrantyNone.
Warranty90 Days.
