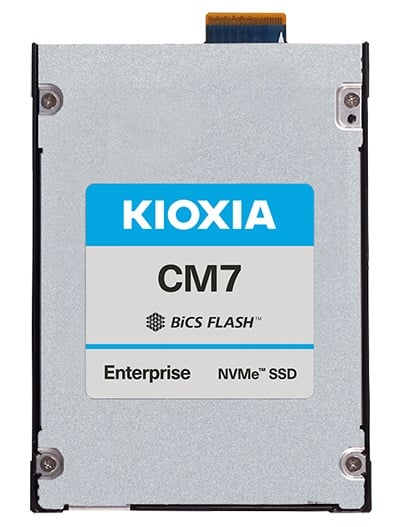

KIOXIA KCM7XRJE3T84 3.84TB NVMe 2.0 E3.S 7.5mm CM7-R 1DWPD Enterprise Ssd

Name: KIOXIA KCM7XRJE3T84 3.84TB NVMe 2.0 E3.S 7.5mm CM7-R 1DWPD Enterprise Ssd
Brand: KIOXIA | More SSD from KIOXIA
SKU: KCM7XRJE3T84
Price: 3600.00 USD
Availability: InStock

KIOXIA | More SSD from KIOXIA · Part: KCM7XRJE3T84

Capacity Capacity: 3.84TB

Availability 5-7 days

Request Quote

Delivery options

We ship to business and residential addresses.
Express delivery (USA) Typical transit 1–3 business days, depending on cut-off and carrier.
Free ground (USA) Usually 2–6 business days; varies by location and stock.
International delivery Where applicable, a valid carrier account (UPS, FedEx, DHL, etc.) may be required for customs and brokerage.

Returns

90-day return window where stated in our published return policy.
Items must be returned in original condition unless the policy specifies otherwise.

Warranty

Warranty length and coverage vary by manufacturer and product line.
See our policies page for full warranty and support terms.

Product overview

KIOXIA KCM7XRJE3T84 3.84tb Cm7-r Series Pcie 5.0 Nvme 2.0 E3.s 7.5mm Thickness 1dwpd Enterprise Solid State Drive.

Basic Specifications

- Form FactorE3.s

- LnterfacePcie® 5.0, Nvme™ 2.0

- Maximum Interface Speed128 Gt/s (pcie® Gen5 Single X4, Dual X2)

- Flash Memory TypeBics Flash™ Tlc

Key Features

- Pcie® 5.0, Nvme™ 2.0 Specification Compliant
- Open Compute Project Datacenter Nvme™ Ssd Specification V2.0 Support (not All Requirements)

- Form FactorE3.s, 7.5 Mm Thickness

- Proprietary KIOXIA ArchitectureController, Firmware And 112-layer Bics Flash™ 3d Tlc

- Dual-port Design For High Availability Applications
- High Performance With Lower Power Consumption
- Power Loss Protection (plp) And End-to-end Data Protection
- Suited For 24x7 Enterprise Workloads

Security OptionsSie

Performance

- Read14,000 Mb/s

- Write6,750 Mb/s

- 4 Kib Random Read2,700k Iops

- 4 Kib Random Write310k Iops

Power Requirements

- Supply Voltage12 V ± 10 %, 3.3 V ± 15 %

- Power Consumption (active)24 W Typ.

- Power Consumption (ready)5 W Typ.

Reliability

- Mttf2,500,000 Hours

- Endurance Dwpd1

Dimensions

- Thickness7.5 Mm +0.2 / -0.5 Mm

- Width76 Mm ± 0.25 Mm

- Length112.75 Mm ± 0.4 Mm

- Weight110 G Max

Environmental

- Temperature (operating)0 °c To 73 °c 0 °c To 76 °c

- Temperature (non-operating)-40 °c To 85 °c

- Humidity (operating)5 % To 95 % R.h.

- Vibration (operating)21.27 M/s2 { 2.17 Grms } ( 5 To 800 Hz )

- Shock (operating)9.8 Km/s2 { 1,000 G } ( 0.5 Ms )

Availability5-7 days

Mfg WarrantyNone.

Our Warranty90 Days.
