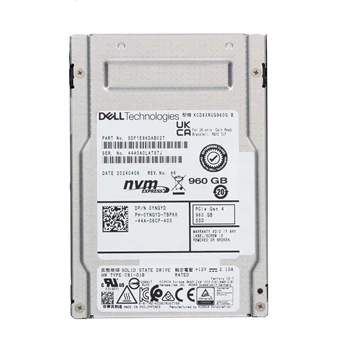

KIOXIA CD8-R SDF1E86DAB02T SSD Read Intensive 960 GB PCIe 4.0 x4 (NVMe) New DELL OEM

KIOXIA | More SSD from KIOXIA · Part: SDF1E86DAB02T

Capacity Capacity: 960GB

Availability 5-7 days

Request Quote

Product overview

Main Specifications

Product DescriptionKIOXIA Cd8-r SDF1E86DAB02T - Solid State Drive - 960 Gb - Pci Express 4.0 X4 (nvme)
TypeSolid State Drive - Internal
Capacity960 Gb
Nand Flash Memory Type3d Triple-level Cell (tlc)
Form Factor2.5
InterfacePcie 4.0 X4 (nvme)
FeaturesEnd-to-end Data Protection, Power Loss Data Protection, Sanitize Instant Erase (sie), 112-layer 3d Bics Flash

Performance

Drive Writes Per Day (dwpd)1
Drive ClassRead Intensive
Sequential Read7200 Mb/s
Sequential Write1800 Mb/s
Maximum 4kb Random Write80000 Iops
Maximum 4kb Random Read1000000 Iops

Reliability

Mtbf2500000 Hours
24x7 OperationYes

Expansion & Connectivity

Interfaces1 X Pci Express 4.0 (nvme)
Compatible Bay2.5

Environmental Parameters

Min Operating Temperature32 °f
Max Operating Temperature167 °f
Min Storage Temperature-40 °f
Max Storage Temperature185 °f
Humidity Range Operating5 - 95% Rh
Shock Tolerance (operating)1000 G @ 0.5 Ms
Vibration Tolerance (operating)2.17 Grms @ 5-800 Hz
Availability5-7 days
Mfg WarrantyNone.
Warranty90 Days.
