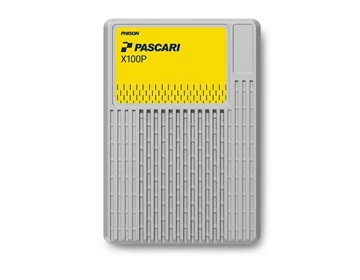

Phison XP106H0015T3P0116T300 Pascari X100P 15360GB U.2 PCIe Gen4x4 Non Opal Security Ssd

PHISON | More SSD from PHISON · Part: XP106H0015T3P0116T300

Capacity Capacity: 15.36TB

Availability 5-7 days

Request Quote

Product overview

PHISON XP106H0015T3P0116T300 Pascari X100p 15360gb U.2 Single Port Pcie Gen4x4 Non-opal Security Solid State Drive.

Main Features

Capacity15360gb
Form FactorU.2
InterfaceSingle Port
SecurityNon-opal
Pcie Interface
Pcie Gen4x4
Single Port X4 Lanes
Pcie Aer (advanced Error Reporting)

Performance

Maximum Sequential Read / Write7000mb/s / 6800mb/s
Maximum Random Read / Write1600kiops / 180kiops
Sustained Random Read / Write Latency(micro Second)100/15(qd=1, Workers=1)| 110/300(qd=32, Workers=1)| 450/3800(qd=64, Workers=8)
Iops Consistency95%
Qos (quality Of Service, 99%)read / Write100/12(qd=1, Workers=1)| 120/200(qd=32 Workers=1)| 600/3000(qd=64, Workers=8)
Power Consumption
Random Read/write (typ)16.2/19.6 W
Sequential Read/write (typ)12.3/20.1 W
Inrush Current1.5a
Idle Power (typ)7.32 W
Dwpd1dwpd
Tbw28032 Tb
Lba F512 / 512+ 8 / 4k / 4k + 8 / 4k + 64 Bytes
Mtbf2,500,000 Hours
Uber(uncorrectable Bit Error Rates)< 1 Sector Per 10^18 Bits Read
Advanced Flash Management
Ecc
Static And Dynamic Wear Leveling
Bad Block Management
Deallocate (trim) Command
Smart
Over-provision
Firmware Upgrade
Temperature Range
Operation(0 - 70) Degrees Centigrade With Specified Airflow
Storage(-40 - 85) Degrees Centigrade
Rohs Compliant
Enterprise Features Support List
Namespace
Single Port
Reservation
Metadata Protection Thermal Throttling
Power Loss Protection
Hardware Aes-xts 256-bit Encryption
Support Smbus
Support Nvme-mi (management Interface)
Data Retention3 Months
Physical DimensionU.2 100(l)x70(w)x15(h) Mm
Compliance
Pcie Express Base 4.0
Nvme 1.4
Nvme Management Interface Rev 1.1
Availability5-7 days
Mfg WarrantyNone
Our Warranty90 Days
