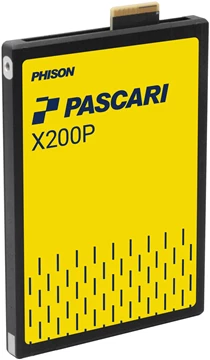

Phison XP208H0315T3P2116T310 Pascari X200P 15360GB U.2 PCIe Gen5x4 Opal Security Ssd

PHISON | More SSD from PHISON · Part: XP208H0315T3P2116T310

Capacity Capacity: 15.36TB

Availability 5-7 days

Request Quote

Product overview

PHISON XP208H0315T3P2116T310 Pascari X200p 15360gb U.2 15mm Single Port Pcie Gen5x4 Opal Security Solid State Drive.

Main Features

Capacities15360 Gb
Form FactorU.2 15mm
SecurityOpal
Pcie Interface
Pcie Gen5x4
Single Port X4 Lanes
Pcie Aer (advanced Error Reporting)
Power Consumption
Active Power25 W
Inrush Current2.5a
Idle Power<9w
Dwpd1dwpd
Tbw28032 Tb
Lbaf512 / 512+ 8 / 4k / 4k + 8 / 4k + 64 Bytes
Mtbf2.5 Million Hours
Uber(uncorrectable Bit Error Rates)3d Nand < 1 Sector Per 10^18 Bits Read
Advanced Flash Management
Ecc
Static And Dynamic Wear Leveling
Bad Block Management
Deallocate (trim) Command
Smart
Over-provision
Firmware Upgrade
Temperature Range
Operation0c ~ 70c With Specified Airflow
Storage-40c ~ 85c
Rohs Compliant
Enterprise Features Support List
Namespace
Single Port
Reservation
Metadata Protection Thermal Throttling
Power Loss Protection
Hardware Aes-xts 256-bit Encryption
Support Smbus
Support Nvme-mi (management Interface)
Data Retention3 Months
Physical DimensionU.2 15mm 100(l)x70(w)x15(h) Mm
Compliance
Pcie Express Base 5.0
Nvme Express 2.0
Nvme Express Management Interface Rev 1.2
Pcie Express Sff-8639 Module Specification Revision 4.0, Version1.0
Flash Configuration512gb X 32
Flash Type128ce, 512gb Odp
Weight (g)<250
Tbw (terabytes Written) And Dwpd (drive Write Per Day)
Flash Structure512gb X 32
Flash Type3d Etlc
Tbw28032
Dwpd1
Supply Voltage
12v+/- 10%
12v Noise Level240mvp-p, 0-20mhz
12v Min Off Time500ms
3.3v Aux+/- 15%
Inrush Current12v 2.5a
Availability5-7 days
Mfg WarrantyNone
Our Warranty90 Days
