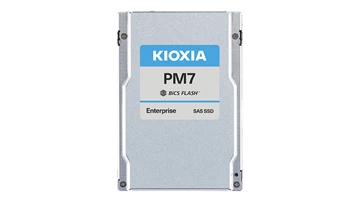

KIOXIA KPM71RUG3T84 3.84TB PM7-R Series SAS 24Gbps 2.5Inch Ssd
KIOXIA | More SSD from KIOXIA · Part: KPM71RUG3T84
Capacity Capacity: 3.84TB
Availability 5-7 days
Product overview
KIOXIA KPM71RUG3T84 3.84tb Pm7-r Series Sas 24gbps 2.5inch 15mm Thickness 1dwpd Enterprise Solid State Drive.
Basic Specifications
Form Factor2.5-inch, 15mm Thickness
LnterfaceSas-4
Lnterface Speed22.5 Gbit/s , 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s, 1.5 Gbit/s
Flash Memory TypeBics Flash™ Tlc
Performance (in Dual-port Mode)
Sustained 128 Kib Sequential Read4,200 Mb/s
Sustained 128 Kib Sequential Write3,650 Mb/s
Sustained 4 Kib Random Read720k Iops
Sustained 4 Kib Random Write155k Iops
Power Requirements
Supply Voltage12 V ± 10 %, 5 V +10 % / -7 %
Power Consumption (ready)5 W Typ.
Reliability
Mttf2,500,000 Hours
Dwpd1
Dimensions
Thickness15.0 Mm +0, -0.5 Mm
Width69.85 Mm ± 0.25 Mm
Length100.45 Mm Max
Weight130 G Max
Environmental
Temperature (operating)0 °c To 70 °c
Temperature (non-operating)-40 °c To 80 °c
Humidity (operating)5 % To 95 % R.h.
Vibration (operating)21.27 M/s2 { 2.17 Grms } ( 5 To 800 Hz )
Shock (operating)9.8 Km/s2 { 1,000 G } ( 0.5 Ms )
Availability5-7 days
Mfg WarrantyNone
Our Warranty90 Days
